Air Source Heat Pump Installation in Maidenhead | Case Study

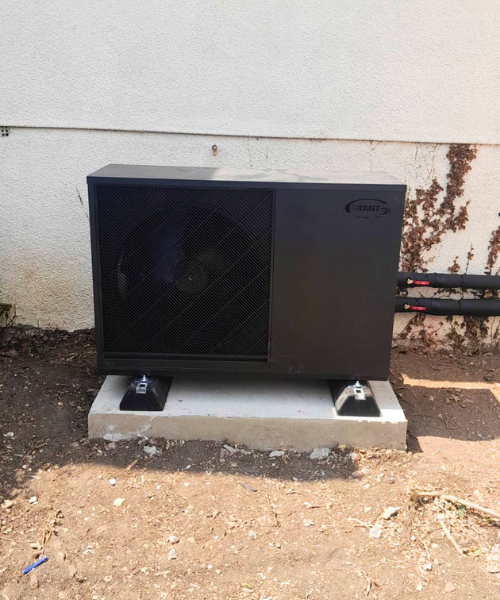

A Grant Aerona R290 9kW air source heat pump was installed at this home in Maidenhead, Berkshire, alongside the property’s underfloor heating system. The complete installation included smart controls, a 300-litre hot water cylinder, 50-litre buffer vessel and system protection.
The property also benefited from the £7,500 Boiler Upgrade Scheme grant, helping to reduce the upfront cost of installing the new renewable heating system.
Considering an air source heat pump for your home? Speak to our team about your property and the options available.
Call: 01628 533 550
Project Summary
Location: Maidenhead, Berkshire
Property Type: Residential
Work Completed: Installed a Grant Aerona R290 9kW air source heat pump
Grant: £7,500 Boiler Upgrade Scheme
Installer: Heppelthwaite – The Red Van Plumbers
System Installed
This ASHP system was designed and installed by the Red Van Plumbers
Heat Pump: Grant Aerona R290 9kW Air Source Heat Pump
Controls: Grant Aerona R290 Smart Controller Kit
Hot Water: Grant QR 300L Twin Coil Cylinder
Buffer Vessel: Inta 50L Buffer Vessel
System Protection: Grant Mag One Filter
Visit the official Grant UK website for product detailS
The Installation
Our engineers installed a Grant Aerona R290 9kW air source heat pump, together with the controls and components required for the new heating system. The installation included a Grant Aerona R290 Smart Controller Kit, manufacturer’s installation pack and an Inta 50-litre buffer vessel. A 300-litre Grant QR twin coil cylinder was installed for domestic hot water, while a Grant Mag One magnetic filter provides additional system protection. The heat pump was integrated with the property’s underfloor heating to provide heating throughout the home.
Find out more about our air source heat pump installation services.
Air Source Heat Pumps and Underfloor Heating
An important part of this installation was that the customer has underfloor heating. Air source heat pumps and underfloor heating can work particularly well together. Underfloor heating distributes warmth across a large surface area and can operate effectively at the lower water temperatures commonly associated with heat pump systems. This can make underfloor heating a particularly suitable way of distributing heat from an air source heat pump. Rather than relying on very hot radiators, warmth is distributed gradually and evenly through the floor.
A property does not need underfloor heating to have a heat pump as correctly sized radiators can also be used. However, where underfloor heating is already installed or forms part of a renovation or new heating system, it can be an excellent match for heat pump technology.
What Does This Heat Pump System Provide for the Home?
The new system provides this Maidenhead property with heating and hot water using renewable heat extracted from the outside air. The Grant Aerona R290 heat pump works alongside the underfloor heating, while the 300-litre cylinder provides stored domestic hot water.
Smart controls manage the system automatically, meaning there should be very little day-to-day intervention required from the homeowner. The result is a modern, lower-carbon heating system designed around the requirements of the property.
This is also a good example of why the entire heating system needs to be considered when installing a heat pump. The heat pump, controls, hot water cylinder, buffer vessel and heat emitters all form part of the overall system.
Supported by the £7,500 Boiler Upgrade Scheme
This Maidenhead installation benefited from the £7,500 Boiler Upgrade Scheme grant, reducing the upfront cost of installing the air source heat pump.
Heppelthwaite – The Red Van Plumbers is an MCS-certified heat pump installer and can support eligible homeowners through the Boiler Upgrade Scheme process as part of their installation.
Air Source Heat Pump Installers in Maidenhead
Heppelthwaite – The Red Van Plumbers installs air source heat pumps in Maidenhead and across Berkshire, as well as neighbouring areas of Buckinghamshire, Oxfordshire and West London. Our team can manage the process from the initial property assessment and system design through to installation, commissioning and Boiler Upgrade Scheme support.
If you’re considering replacing or upgrading your heating system, we can assess your property and explain whether an air source heat pump could be suitable. Visit our air source heat pumps service page to learn more or visit our areas we cover page to see all the locations we serve.
Thinking About an Air Source Heat Pump for Your Home?
Every property is different, which is why choosing the right heat pump and designing the heating system correctly is important.
Our experienced team can assess your home, existing heating system and requirements before recommending the most appropriate solution. We can also explain the £7,500 Boiler Upgrade Scheme grant and support eligible homeowners through the process.
